Innovative 'Starshade' Tech Could Illuminate Rocky Alien Planets
Nineteen different subscale versions of a light-blocking "starshade" were tested recently in the Nevada desert.
Credit: Northrop Grumman Corporation

"Starshade" technology that could help astronomers find and characterize rocky, Earthlike alien worlds was put to the test earlier this year in the Nevada desert.

A starshade, also dubbed an external occulter, is a precisely shaped screen that flies in far-away formation with a space telescope. The device blocks a star's light to create a high-contrast shadow, so that only light from an orbiting exoplanet enters the telescope for detailed study.

While a starshade to hunt alien planets has not been flown before, researchers studying the technique are drawing upon a track record of success in fielding large, deployable antennas in space. Some designs foresee a fully deployed starshade measuring some 110 feet (34 meters) in diameter, with a 65-foot (20 m) inner disk and 28 outstretched flowerlike petals, each over 22 feet (7 m) in length. [7 Ways to Find Alien Planets]

The starshade idea has moved beyond the drawing board.

Subscale versions of starshades have undergone nighttime desert testing, most recently at central Nevada's Smith Creek dry lake bed over five nights in late May and early June of this year. Previously, a California test locale was used. [How the Planet-Hunting Starshade Unfolds in Space (Video)]

Desert appraisals of hardware have focused on how computational optical predictions stack up against in-the-field performance of two different starshade shapes, said Steve Warwick, program manager for starshade field testing at Northrop Grumman Aerospace Systems.

The recent Nevada test took advantage of the thin air and very dark skies at high-altitude Smith Creek, Warwick said. A six-person team made use of a modified Celestron telescope and ultrabright, light-emitting diodes (LEDs) placed about 1 mile (1.6 kilometers) away. The LEDs were all finely aligned with an automated stand topped by a starshade model sitting in the middle of the test range.

Data and images were gathered at the telescope stand.

"As you can imagine, we take a lot of data while we're sitting out there in tents at night," Warwick told Space.com. "There is a lot of post-processing that we have to do … and that's underway at the moment."

A lot will be asked of a starshade on a planet-hunting space mission.

"What we're trying to do here is look at a lighthouse from a mile away and spot a firefly that's just a half inch away from that lighthouse," he said. "We're trying to block the light from the lighthouse."

In the simplest terms, a starshade is a specially shaped finger placed in front of a bright source to dim the light, said Ron Polidan, manager of science systems at Northrop Grumman Aerospace Systems.

"So in essence you can consider it a traveling dark spot," Polidan said.

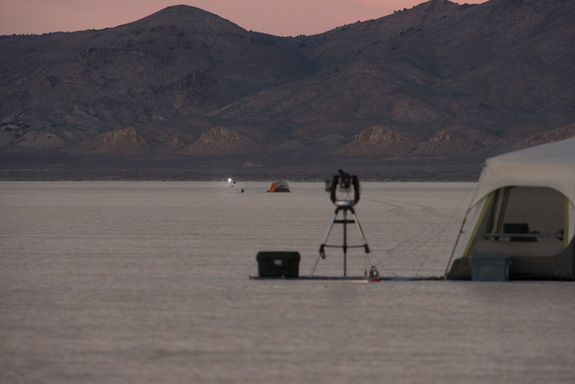

The desert is an ideal location for starshade testing, as it provides enough space to set up three stations — the light source, the starshade and a telescope. The light station is at the far end where a bright light source is located (the "star") along with very faint "planet" sources. The starshade station is in the middle, and the telescope station is in the foreground.
The desert is an ideal location for starshade testing, as it provides enough space to set up three stations — the light source, the starshade and a telescope. The light station is at the far end where a bright light source is located (the "star") along with very faint "planet" sources. The starshade station is in the middle, and the telescope station is in the foreground.
Credit: Northrop Grumman Corporation

Polidan said that company technologists are looking at several options on how best to unfold a large starshade in space. For example, there's heritage to be found in Northrop's lead work on NASA's Tracking and Data Relay Satellite System, he said, as well as in building the space agency's $8.8 billion James Webb Space Telescope (JWST).

"So part of the assessment going on with the desert tests is to understand simple and reliable deployment systems," Polidan told Space.com.

Northrop Grumman's starshade is "telescope agnostic," said Warwick. That is, it could be used with JWST, which is scheduled to blast off in 2018, or with other space scopes being considered. In the end, it's up to NASA, he said.

Starshades aid in direct imaging, helping telescopes gather photons arriving from a target planet. They can help deliver spectroscopic looks of the atmosphere of an exoplanet, "and that's where it feeds into the search for life," Warwick said.

Additional starshade testing in the desert is in the offing for next year, Warwick said. All the ground work, he said, is confidence-building in order to move forward on a future space-size starshade mission.

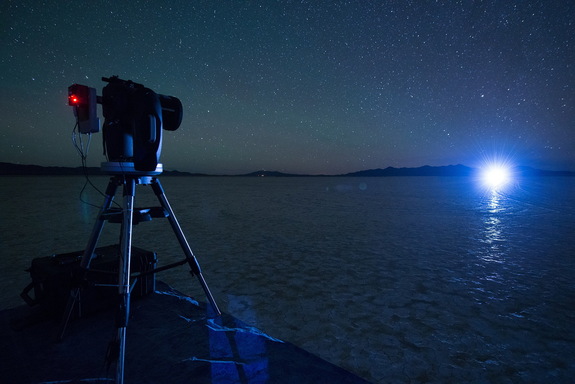

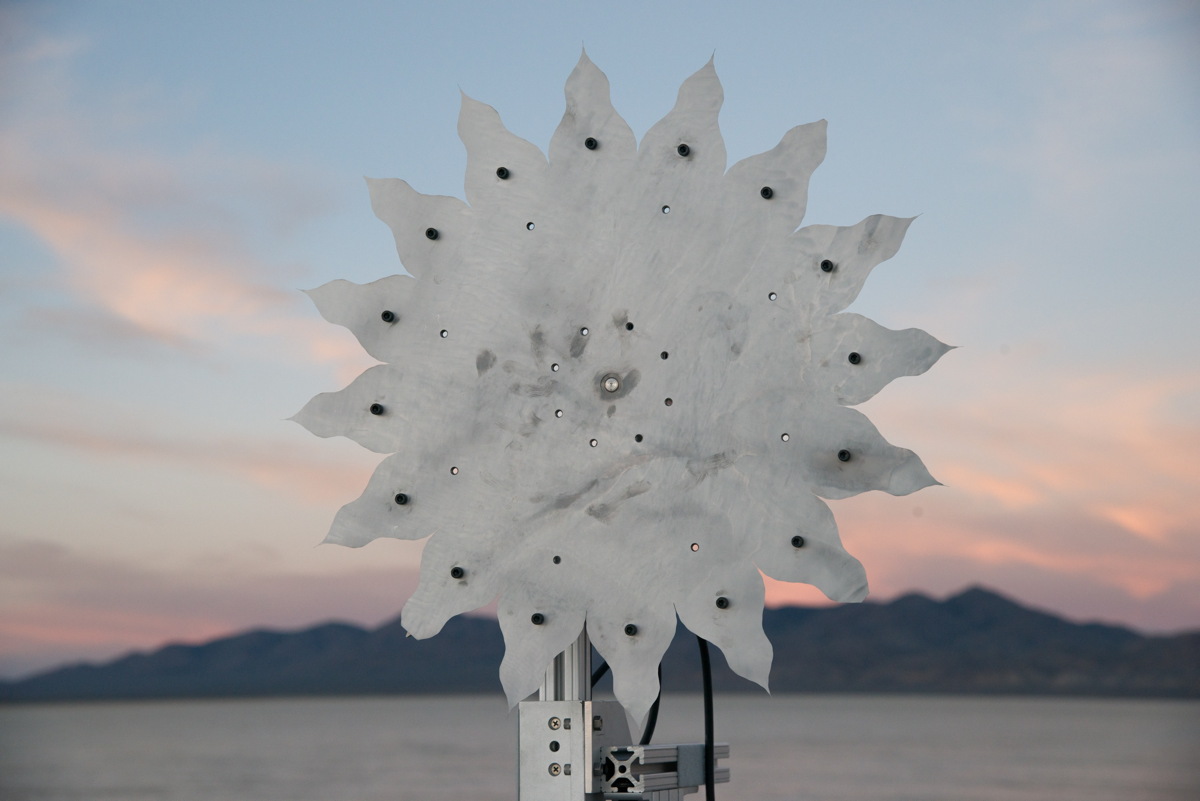

After sunset, the team conducted tests using artificial starlight to study the results of 1/100th-scale Starshade designs. The desert location provides enough darkness for the light source to be the brightest thing around. When a person looks through the telescope, the starshade blocks the bright starlight to give the observer a clear view of the dimmer planet light.
After sunset, the team conducted tests using artificial starlight to study the results of 1/100th-scale Starshade designs. The desert location provides enough darkness for the light source to be the brightest thing around. When a person looks through the telescope, the starshade blocks the bright starlight to give the observer a clear view of the dimmer planet light.
Credit: Northrop Grumman Corporation

"We can never do an 'end-to-end test' of the starshade concept. So instead, we break the testing into two parts," said Sara Seager, professor of planetary science and physics at the Massachusetts Institute of Technology in Cambridge, Massachusetts.

Seager is chair of a current 18-month NASA-sponsored Starshade Probe-Class mission Science and Technology Definition Team.

Seager told Space.com via email that one test phase involves fabrication and deployment to show that the required tolerances and construction of the starshade petals can be met. The other is subscale environmental testing in a lab or outdoors to demonstrate that starshade experts "understand the math and that diffraction behaves as we expect," she said.

"This two-step process is our best option," Seager said.

Steve Warwick, Northrop Grumman program manager for Starshade field testing, and Tiffany Glassman, astronomer and principal investigator for Starshade field testing, stand in the Starshade's shadow at the telescope station, demonstrating the technology's desired effect.
Steve Warwick, Northrop Grumman program manager for Starshade field testing, and Tiffany Glassman, astronomer and principal investigator for Starshade field testing, stand in the Starshade's shadow at the telescope station, demonstrating the technology's desired effect.
Credit: Northrop Grumman Corporation

There's one simple bottom line for Seager: Seeing is believing. The desert testing offers one way to make that happen.

"What we would absolutely love to see is an actual astronomical discovery using the starshade," Seager said. "People have conceived putting the starshade on one mountain top and a telescope on a lower mountain peak."

When an object of interest passes over the starshade — say a star with a debris disk — perhaps an interesting observation can be made, she said.

"We have to show the world that the starshade is a part of the astronomer's tool kit," Seager said.
