Space History Photo: Atmospheric Entry Simulator at Ames

space history, NASA, wind tunnels

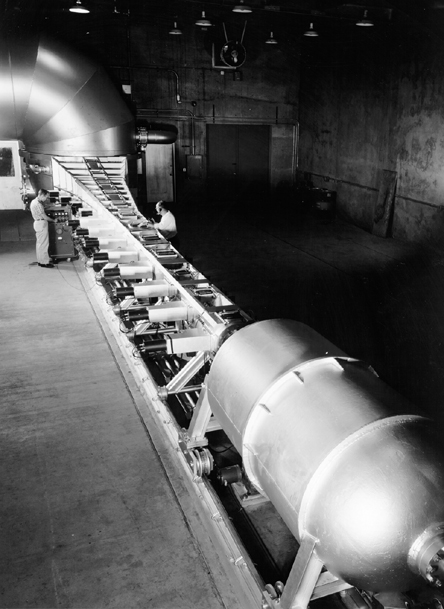

Technicians adjust parts of the Atmospheric Entry Simulator. (Image credit: NASA.)

In this historical photo from the U.S. space agency, the Atmospheric Entry Simulator at NASA's Ames Research Center, Moffett Field, California, is shown in 1959. Visible in the foreground is a large tank containing air under high pressure. In the middle ground directly behind it is a special trumpet-shaped nozzle, contured so that air flowing through it gradually changes in density in the same way that the Earth's atmosphere changes in density with altitude. Not visible in this photograph is a high speed gun used to launch a test model at earth re-entry speed (17,000 mph) upstream through a special nozzle while air is flowing through it.

Technicians are adjusting the spark shadowgraph station required to make accurate picture and time recording of the model in flight. When a gun-launched model flies at full re-entry velocity into the simulator nozzle, it experiences the decelerations, stresses, pressures and temperatures of actual re-entry during a few thousandths of a second. The simulator can quickly and economically determine in the laboratory whether a specific design can survive atmospheric re-entry.

Each weekday, looks back at the history of spaceflight through photos (archive).
