Shock Absorber Plan Set for NASA's New Rocket

Shock Absorber Plan Set for NASA's New Rocket

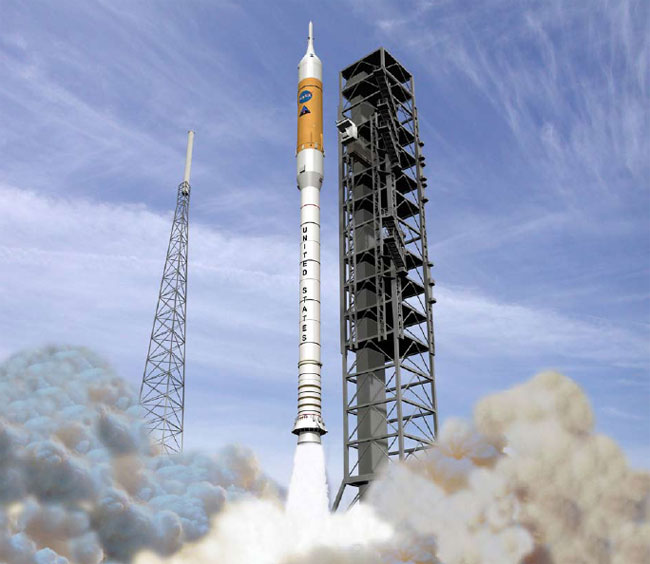

An artist's interpretation of NASA's Ares I rocket launching spaceward. (Image credit: NASA.)

NASAengineers have come up with a dual shock absorber solution to the problem ofexcessive vibrations with the new Ares I rocket that will launch the agency?sOrion space shuttle replacement.

Twodifferent systems at the top and bottom of the newrocket?s first stage should reduce the booster?s peak vibrations duringflight to what engineers described as a few-seconds-long ?jackhammer effect.?

Therecommended shock absorber system includes a spring and damper system betweenthe Ares I booster?s first and second stages, as well as a set of 16spring-mounted weights in the aft skirt at the bottom of the first stage.

?It?s a lotlike the shock absorbers on your car,? said Steve Cook, Ares project manager atNASA?s Marshall Space Flight Center in Huntsville, Ala., in a Tuesdayteleconference. ?It isolates the vibrations just traveling through thestructure, all the way up to the seat.?

Without theupgrade, an Ares I rocket and its astronaut crew would be subjectedto shaking forces of up to five or six times Earth?s gravity (5 to 6 Gs),or about twice the force experienced by shuttle astronauts during launch,according to NASA?s early analysis. But with the shock absorbers in place,vibrations in the Ares 1 rocket should be limited to about 0.25 Gs, orone-fourth the force of Earth?s gravity, NASA engineers said.

The peakshaking should last just a few seconds near the 115-second mark just afterliftoff, said Cook, who sat in a chair-based simulation of the vibration in aNASA test. He compared it to driving a car on the bumpy shoulder of a highway.

?It reallydoesn?t physically bother you,? Cook said. ?It?s just kind of a highvibration.?

A shakyhurdle

Thevibration issue, one of the top engineering hurdles for NASA?sAres I rocket, stemmed from a thrust oscillation in the launch vehicle?ssolid rocket booster-derived first stage. Thrust oscillation is a commonphenomenon in solid propellant rockets, which burn from the inside out allowinggases to swirl in the interior until they resonate the entire structure like anorgan pipe.

The mainconcern centered on astronaut performance during an Ares I launch, said GarryLyles, NASA?s associate director for technical management at the Marshall SpaceFlight Center in Huntsville, Ala. The higher vibrations were not a crew healthconcern, but could prevent astronauts from reading instrument panels orflipping switches precisely due to blurry vision.

?What wewant to make sure of is that we don?t get into a situation that would leaveaftereffects with the crew,? Lyles added. ?We want them to feel good after[spacecraft] separation.?

The plannedshock absorbing system?s passive spring and damper component is designed to sitat the top of the first stage and reduce vibrations from thrust oscillationsfrom a peak 6 Gs to about 1 G. The addition of 16 tuned mass absorbers,cylindrical shock absorbers that use motors to sense vibrations and nullifythem using spring-mounted weights, would further limit the shaking to about0.25 Gs, engineers said.

Altogether,the added equipment would reduce the lift capacity of the Ares I rocket?s firststage by up to 1,400 pounds (625 kg), though the booster segment currently hasa margin of about 8,000 pounds (3,628 kg) to work with, Cook said.

The firststage of NASA?s Ares I rocket will use a five-segment solid rocket booster, onesegment longer that the twin four-segment versions used on U.S. space shuttlestoday. The second stage relies on liquid propellant to boost theOrion capsule into orbit.

Engineerswill attach sensors to the solid rocket boosters and astronaut seats onupcoming shuttle missions to better understand the amount of vibrationspaceflyers are currently subjected to on the way up into space, Lyles said.

Meanwhile,Ares I rocket engineers will turn their attention to other details with theproject.

?There?snothing on our risk list that is what I would call a showstopper or a majorissue that we can?t deal with,? Cook said.
