Space History Photo: Rendezvous Docking Simulator

By NASA Archives
published

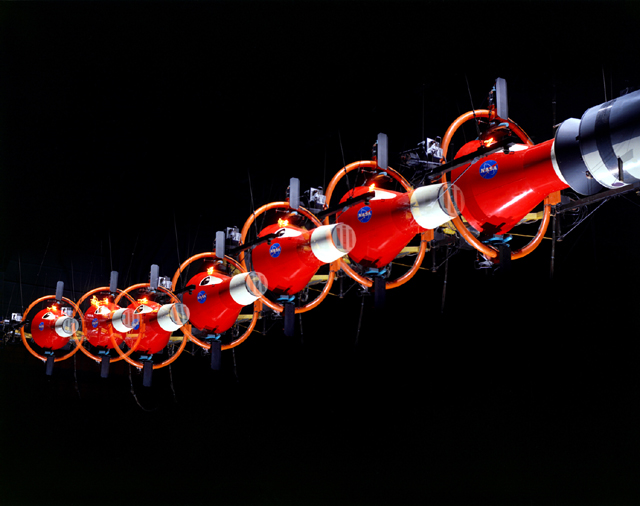

A multiple exposure image of the Rendezvous Docking Simulator during training.
A multiple exposure image of the Rendezvous Docking Simulator in action. (Image credit: NASA | William Salyer )

In this historical photo from the U.S. space agency, a multiple exposure image of Rendezvous Docking Simulator is shown on Feb. 7, 1964. The Gemini spacecraft was supported in a gimbal system by an overhead crane and gantry arrangement which provided 6 degrees of freedom - roll, pitch, yaw, and translation in any direction - all controllable by the astronaut in the spacecraft. The controls fed into a computer which in turn provided an input to the servos driving the spacecraft so that it responded to control motions in a manner which accurately simulated the Gemini spacecraft.

Each weekday, SPACE.com looks back at the history of spaceflight through photos (archive).

Join our Space Forums to keep talking space on the latest missions, night sky and more! And if you have a news tip, correction or comment, let us know at: community@space.com.
