1 of 37
UARS Satellite in Orbit
Credit: NASA
Description: An artist's concept of the Upper Atmosphere Research Satellite (UARS) satellite in space. The 6 1/2-ton satellite was deployed from space shuttle Discovery in 1991 and decommissioned in December 2005. It will re-enter Earth's atmosphere as debris in late 2011.
2 of 37

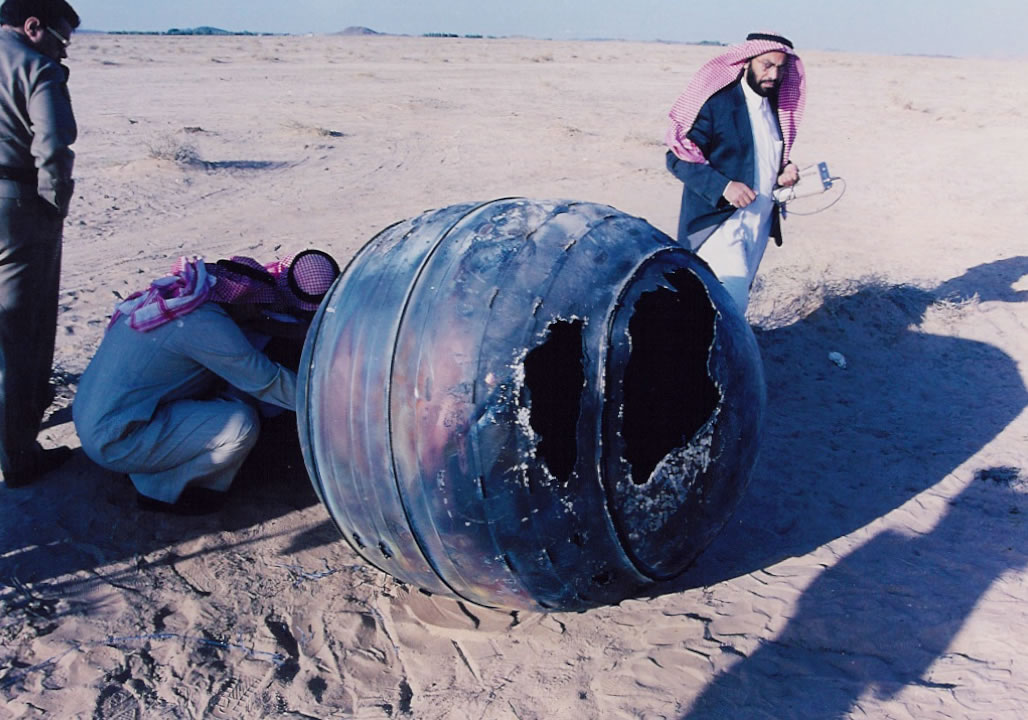

Space Debris Desert Dropdown
Credit: NASA
On 21 January 2001, a Delta 2 third stage, known as a PAM-D (Payload Assist Module - Delta), reentered the atmosphere over the Middle East. The titanium motor casing of the PAM-D, weighing about 70 kg, landed in Saudi Arabia about 240 km from the capital of Riyadh.
3 of 37

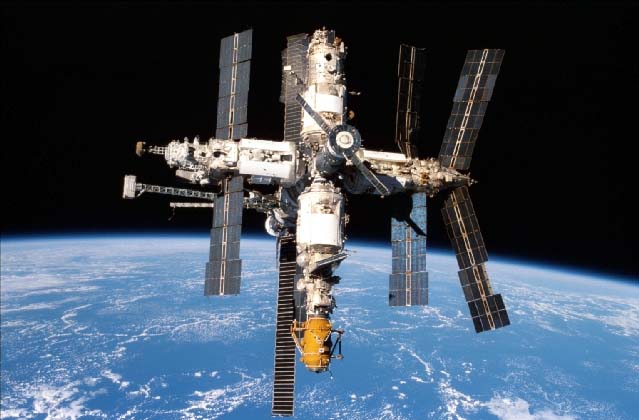

Space Station Mir
Credit: NASA
The Mir Space Station and Earth limb observed from the Orbiter Endeavour during NASA's STS-89 mission in 1998. Mir was de-orbited on March 23, 2001 breaking up over the Pacific Ocean.
4 of 37
Shuttle Columbia Debris
Credit: Nacogdoches Police Department
This tank from the space shuttle Columbia, which was destroyed during re-entry to Earth in 2003, was found in 2011 in east Texas.
5 of 37
Spacewalker Loses Tool Bag In Orbit
Credit: NASA TV.
An equipment bag drifts away from spacewalker Heide Stefanyshyn-Piper as she works on a solar array gear during a Nov.18, 2008 spacewalk outside the International Space Station.
6 of 37
Cosmos 954 Space Debris Nightmare
Credit: NASA
A secret Soviet-navy satellite called Cosmos 954, which was launched on Sept. 18, 1977, spiraled out of control. The spy radar antennas each sported a compact nuclear reactor, making the reentry one of the most frightening to date for people on the ground.
7 of 37
Cerise Satellite Hit by Debris Illustration
Credit: CNES
Orbital debris meets operational satellite. The build-up of human-created orbital debris has reached a critical point. Here, an artist depicts spacecraft, which was a French military satellite, when it was hit by space debris in July 1996.
8 of 37

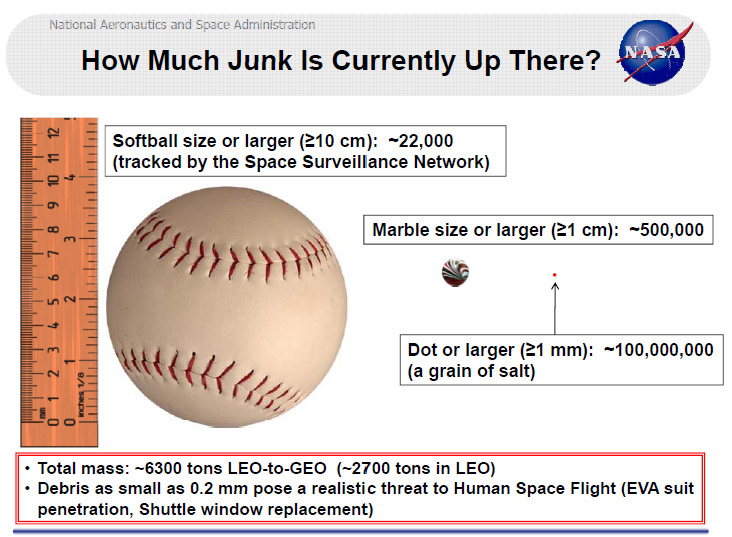

How Much Junk Is Currently Up There?
Credit: NASA/ J.-C. Li
This chart shows statistics relating to space junk circling the Earth.
9 of 37

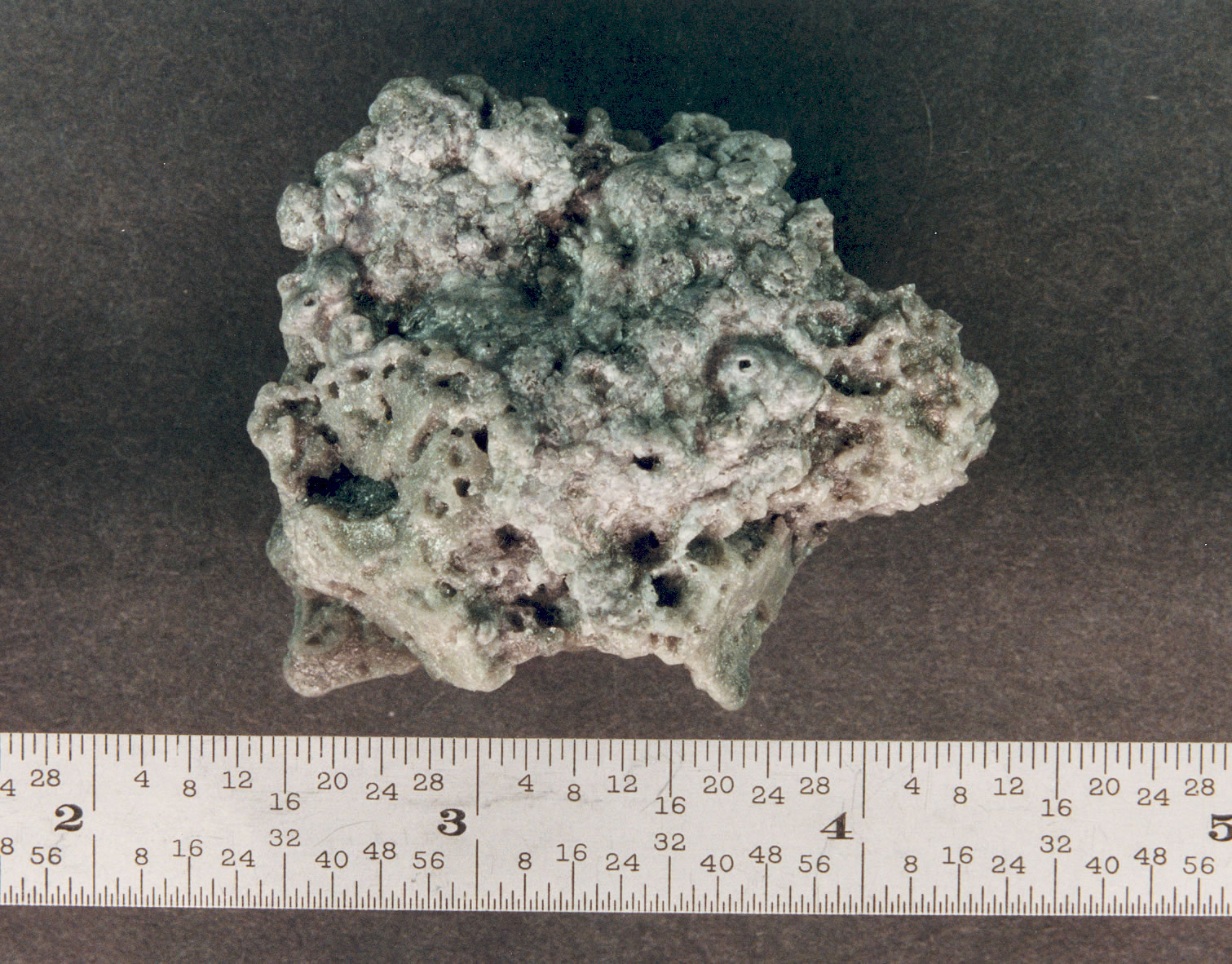

Space Debris: Solid Rocket Motor Slag
Credit: NASA
Solid rocket motor (SRM) slag. Aluminum oxide slag is a byproduct of SRMs. Orbital SRMs used to boost satellites into higher orbits are potentially a significant source of centimeter sized orbital debris. This piece was recovered from a test firing of a Shuttle solid rocket booster.
10 of 37

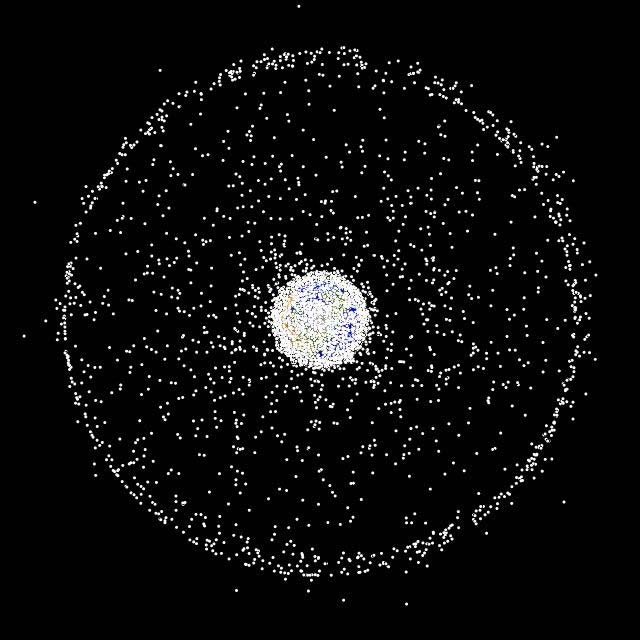

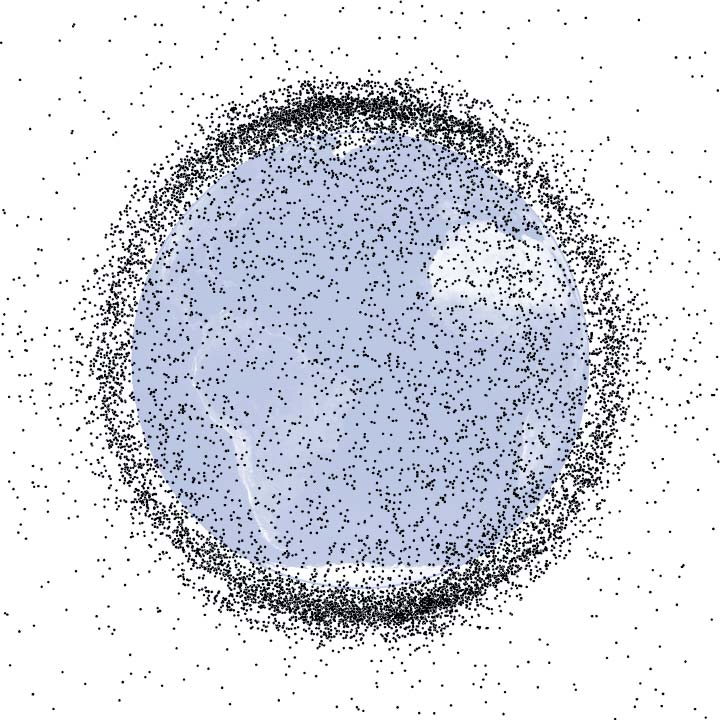

Space Junk Problem Detailed
Credit: NASA/Orbital Debris Program Office.
Each dot represents a bit of known space junk that's at least 4 inches (10 cm) in low-Earth orbit, where the space station and shuttles roam. In total, some 19,000 manmade objects this size or bigger orbit Earth as of July 2009; most are in low-Earth orbit. Countless smaller objects are also circling the planet.
11 of 37

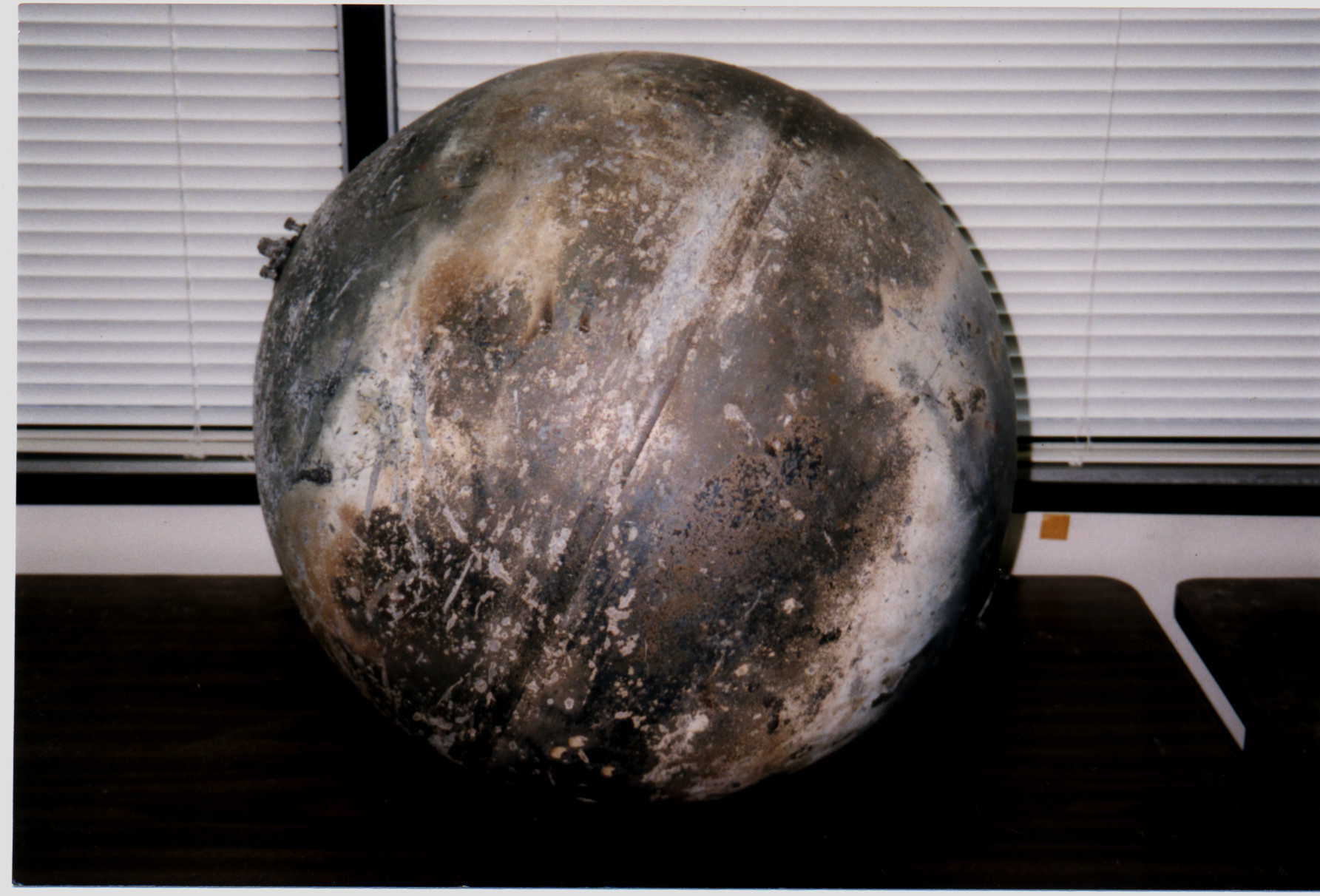

Delta Rocket Pressurant Tank Debris
Credit: NASA
This 30 kg titanium pressurant tank also survived the reentry of the Delta 2 second stage on 22 January 1997 but was found farther downrange near Seguin, TX.
12 of 37

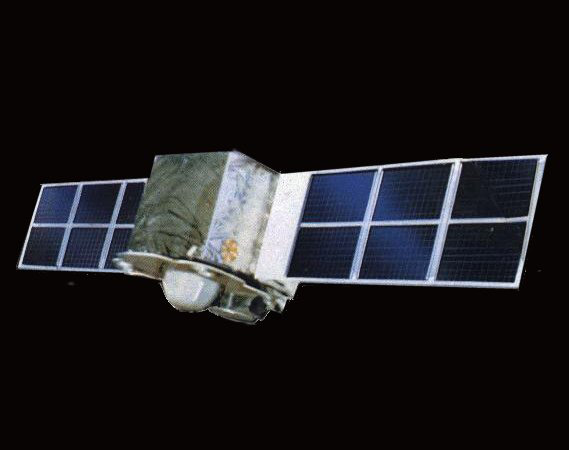

China's Anti-Satellite Test: Worrisome Debris Cloud Circles Earth
Credit: Federation of American Scientists.
Wipe out in the heavens: In 2007, China destroyed one of its own – an aging Fengyun-1C weather satellite – via an anti-satellite test.
13 of 37

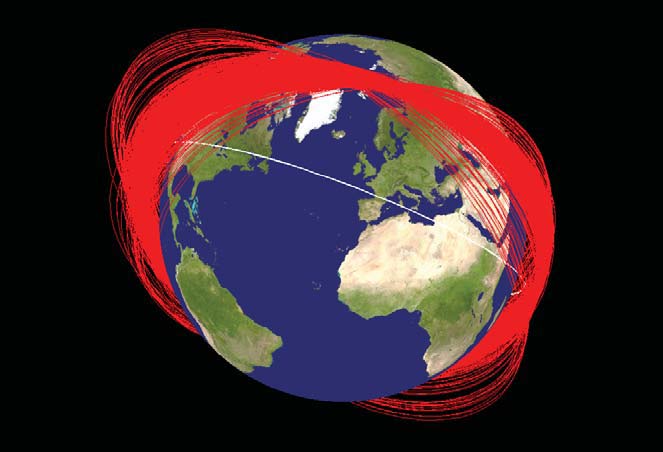

China Anti-Satellite Debris Paths
Credit: NASA Orbital Debris Program Office
Known orbit planes of Fengyun-1C debris one month after its 2007 disintegration by a Chinese anti-satellite (ASAT) interceptor. The white orbit represents the International Space Station.
14 of 37
Space Junk Mess Getting Messier in Orbit
Credit: ESA
The European Space Agency’s Envisat was nearly on the receiving end of a spent Chinese rocket stage. The huge Enivisat satellite is expected to be a space debris target for many years to come.
15 of 37

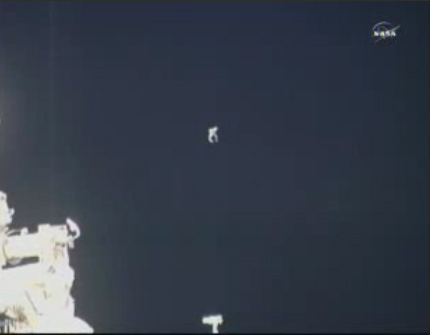

Cosmonauts See Space Station Debris
Credit: NASA TV.
An unidentified object - potentially a cable attachment fixture - floats away from two Russian cosmonauts conducting a spacewalk July 27 outside the International Space Station.
Full Story.
16 of 37
Space Debris Levels
Credit: ESA
This computer illustration depicts the density of space junk around Earth in low-Earth orbit.
17 of 37
Space Debris Tracker
Credit: European Space Agency
An artist's illustration of a satellite collision from space debris in orbit. Space traffic accidents only beget more such accidents.
18 of 37
Space Junk: U.S. Military's USA-193
Credit: John Locker.
UK satellite sleuth, John Locker, took this image of the classified USA-193, subsequently destroyed by a ship-to-space missile interceptor in Feb. 2008.
19 of 37
Satellite's Gone
Credit: IfA/Rob Ratkowski
Debris from the shot-down spy satellite USA 193 was visible from Maui, Hawaii after the satellite was destroyed while falling to Earth in Feb. 2008. The U.S. military shot the satellite down with a surface missile.
20 of 37
DARPA's Space Surveillance Telescope Artist's Conception
Credit: DARPA
An artist's illustration of DARPA's Space Surveillance Telescope to monitor space junk, micrometeoroids and nanosatellties that could endanger U.S. military satellites in orbit.
21 of 37
Scientists Eager to See European Spacecraft's Death Dive
Credit: ESA/D.Ducros.
An artist's illustration of ESA's Jules Verne ATV breaking up during its Sept. 29, 2008 reentry.
22 of 37
Blaze of Glory
Credit: ESA
A photo of ESA's Jules Verne ATV cargo ship as it burns up in Earth's atmosphere to end its mission on Jan. 29, 2008.
23 of 37

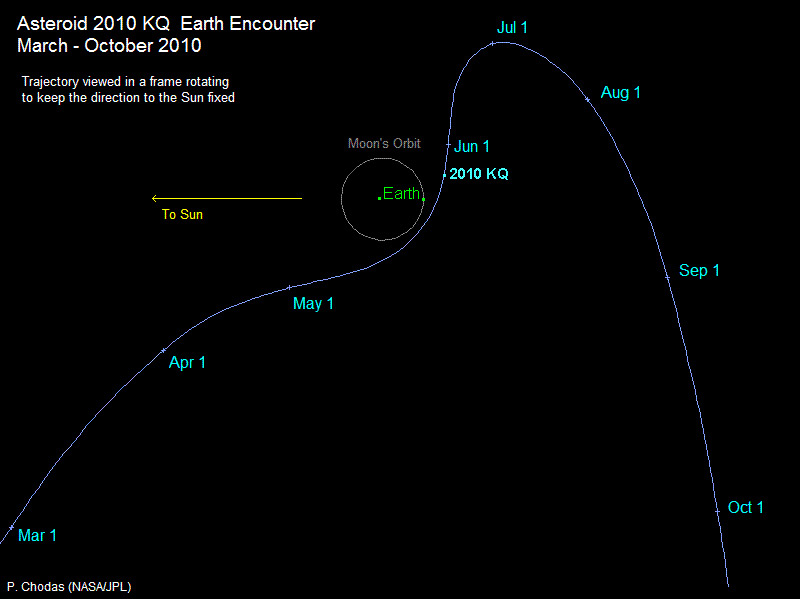

Unidentified Object That Buzzed Earth is Space Junk, Not Asteroid, NASA Says
Credit: NASA/JPL
This NASA graphic shows the trajectory of near-Earth object 2010 KQ, which scientists have concluded is likely a rocket remnant and not an asteroid, in May and June 2010.
Full Story.
24 of 37

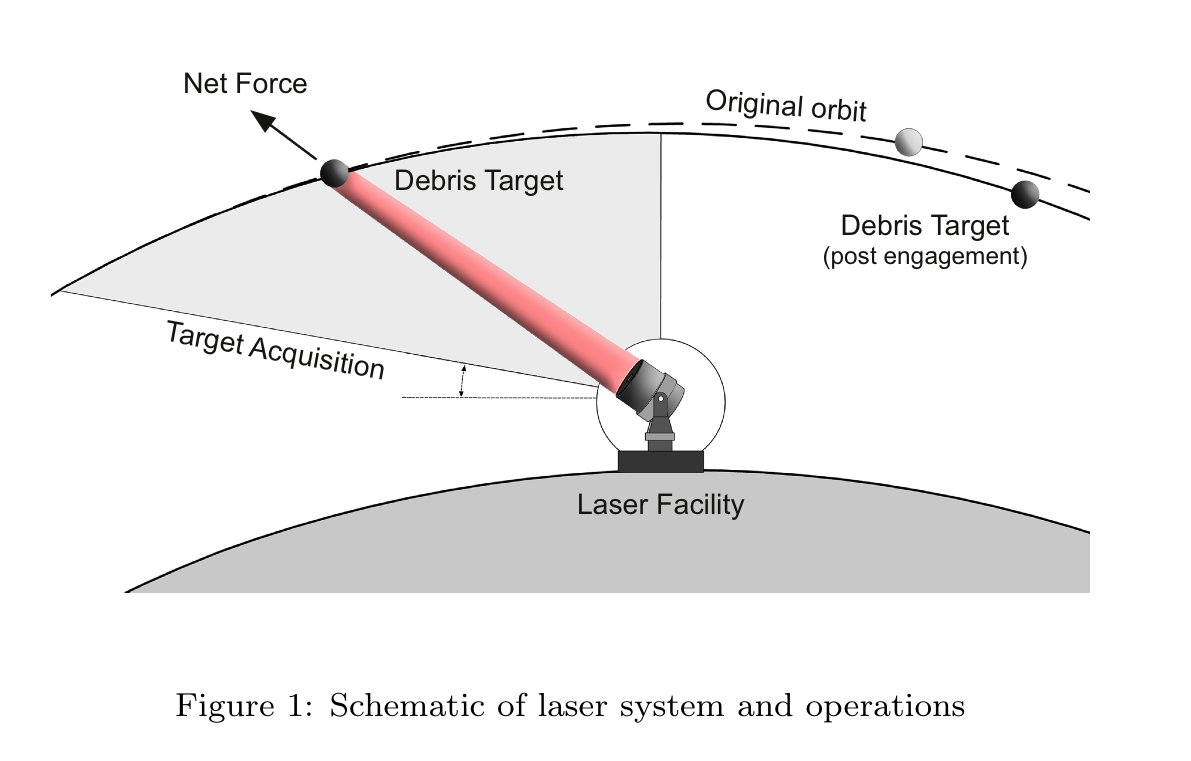

space junk laser diagram
Credit: J. Mason et al., arXiv
A look at how a ground-based laser could nudge space junk clear of any satellites to avoid damaging spacecraft in orbit.
25 of 37

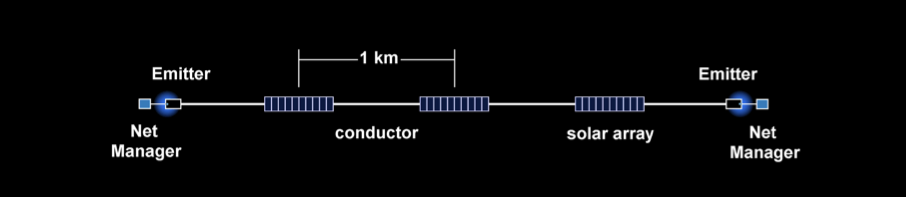

EDDE Orbital Debris Removal Spacecraft
Credit: Star Technology and Research/Jerome Pearson
A diagram of the ElectroDynamic Debris Eliminator (EDDE) concept spacecraft, which is designed to remove space junk from low-Earth orbit.
26 of 37
Air Force to Launch Satellite to Track Space Junk
Credit: Boeing
The first Space-Based Space Surveillance (SBSS) satellite will launch from Vandenberg Air Force Base in California on Sept. 25, 2010. The satellite is designed to detect and monitor debris, spacecraft or other distant space objects.
27 of 37
Artist's illustration of February 2009 Satellite Crash
Credit: Lawrence Livermore National Laboratory
On Feb. 10, 2009, a defunct Russian satellite, right, and a privately owned American communications satellite, left, collided near the North Pole, producing clouds of debris that quickly joined the orbital parade of clutter, increasing the possibility of future accidents.
28 of 37
USAF Gen. William Shelton
Credit: US Air Force Photo/Duncan Wood
U.S. General William Shelton, commander of Air Force Space Command, underscored the worrisome issue of orbital debris during a presentation at the National Space Symposium on April 12, 2011.
29 of 37
Orbital Overload: Space Debris Crowds the Not-So-Friendly Skies
Credit: NASA/The Orbital Debris Quarterly News
Catalogue of orbital debris. Image
30 of 37
Out There: Space Traffic Control System Needed
Credit: NASA
This computer-generated image depicts a vantage point above the Earth's north pole, showing the concentrations of objects in low Earth orbit and in the geosynchronous region.
31 of 37
History-making Japanese Space Mission Ends in Flames
Credit: JAXA
Artist's concept of the Japan's intentional destruction of its first H-2 Transfer Vehicle, a disposable unmanned cargo ship that is purposely burned up during re-entry for disposal.
32 of 37

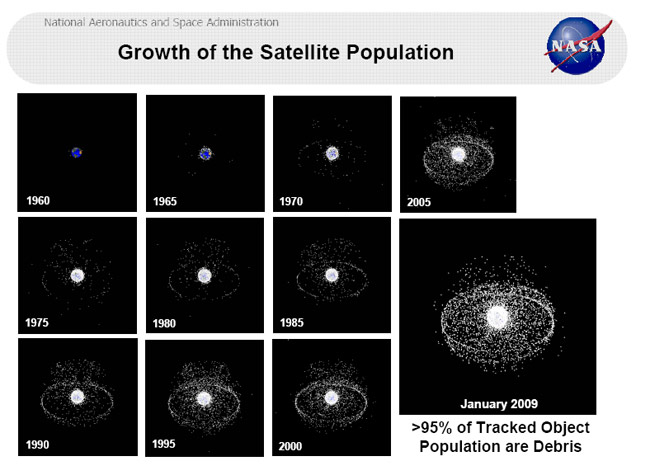

Credit: NASA
This NASA chart shows the historical growth of man-made space debris around Earth since 1960.
33 of 37

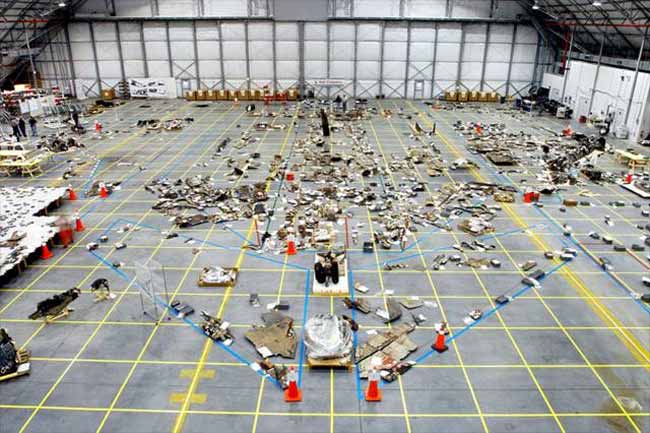

Columbia Debris Display at NASA Promotes Safety
Credit: NASA
An overview of the Columbia debris reconstruction hangar in 2003 shows the orbiter outline on the floor with some of the 78,760 pieces identified to that date. More than 84,000 pieces of shuttle debris were recovered, some of which is included in a traveling NASA display to stress safety.
34 of 37
Russian Breeze-M Rocket Booster Debris
Credit: Rob McNaught
Rob McNaught at the Siding Spring Observatory in Australia caught this image of the space debris created by the explosion of a Russian Breeze-M rocket booster. The bright star Spica is at the right.
35 of 37
Lottie Williams with Space Debris
Credit: Center for Orbital and Reentry Debris Studies (Tulsa World)
In 1997, Lottie Williams of Tulsa, Oklahoma reported that she was struck on the shoulder by falling debris while walking. It was later confirmed to be part of the fuel tank of a Delta II rocket. Additional debris from the Delta second stage reentry were recovered several hundred miles away in Texas.
36 of 37

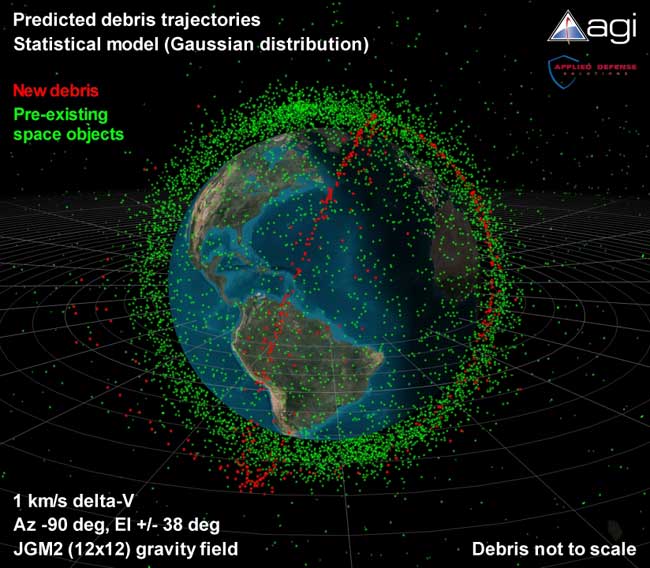

Iridium/Cosmos Satellite Crash
Credit: AGI.
This computer model depicts the new debris from the Iridium-Cosmos crash (in red) on top of the existing debris (in green) in orbit today.
37 of 37

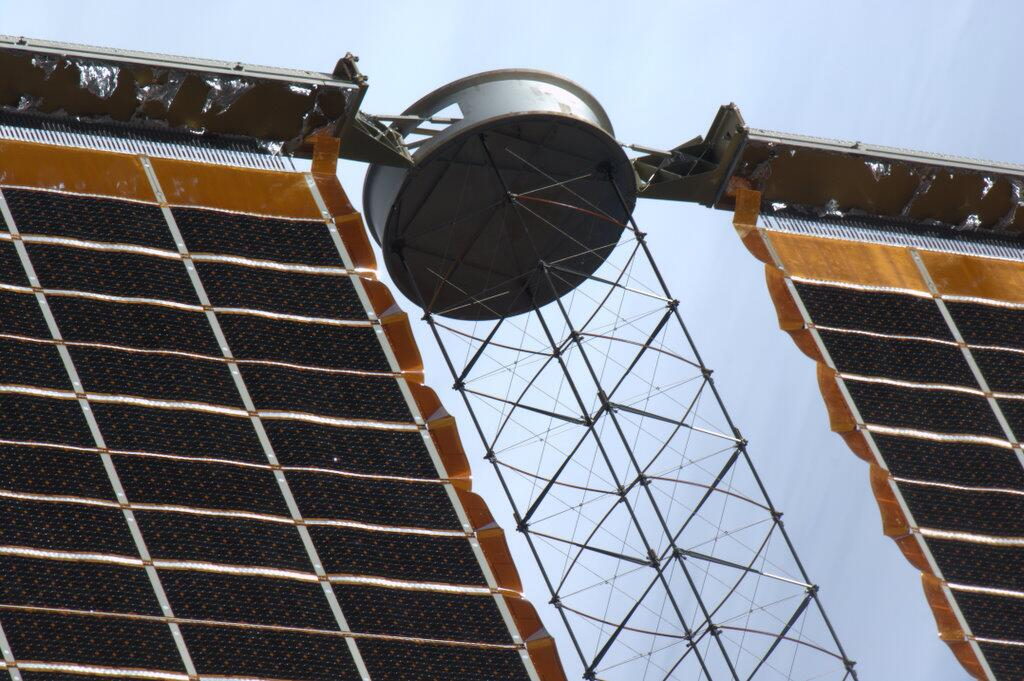

'Bullet Hole' in ISS Solar Array
Credit: Chris Hadfield (via Twitter as @Cmdr_Hadfield)
Chris Hadfield snapped this shot of a "bullet hole" created by a micrometeoroid or piece of space junk in one of the space station's solar arrays.
